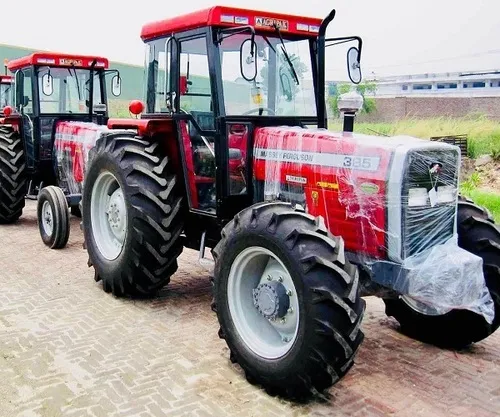

Massey Ferguson Tractor 385

Elevate Your Farming Game with the New Massey Ferguson 385 85hp 2WD Tractor – Discover Its Incredible Features!



•  High Performance 4.41 Diesel Low Noise Engine

•  Reduces Gaseous Emission Under ECE R49

•  Reduced Smoke Level

•  Oil Cooler added for Effective Cooling

•  Hydrostatic Power Steering

•  Efficient Oil Immersed Disc Brake System

•  Spring Suspension Deluxe Seat

•  Easy Accessibility to Service Points



Updated Technical Specifications for the Massey Ferguson 385 2WD Tractor.



Performance

Engine Power at 2,200 rpm> 85 (B.S) hp

Torque at 1,400 rpm 212 Nm

PTO Power at Rated Engine Speed 70 hp

*Certified at BS AU 141a **Manufacturer’s estimate

Electrics

Voltage 12V, Negative Earth

Battery 110 Ah

Starter 2.8 kW

Alternator 45 Amp

Transmission

Type Sliding Spur

Number of Gears 8 Forward, 2 Reverse

Road Speed at 2,200 Engine RPM with 18.4/15-30 rear tyres

Gear Speed (km/hr)

Forward 1 (First Low) 2.7

Forward 2 3.7

Forward 3 5.1

Forward 4 6.8

Forward 5 (First High) 10.4

Forward 6 15.2

Forward 7 20.8

Forward 8 27.9

Reverse 1 (Low) 3.5

Reverse 2 (High) 14.1

Hydraulics

Functions Draft Control, Position Control Response Control, Constant Pumping

Pump Type 4 Piston, Ferguson Pump

Oil Flow 16.7 ltr/min

Pressure 21.2 Mpa at normal operating temperature

Lift Capacity with Lower 2,145 kg

Links Horizontal

Lower Links With Cat. I & II Interchangeable Balls

Rear Axle & Brakes

Axle Type Straddle with apicyclic redution unit

Brake Type Oil immersed, Multi-disc

Brake Pedal Pendant

Braking Area 1.774 sq. cm

Brake Actuation Hydraulic

Parking Brake Hand Lever Operated

Tyres

Front 7.50 – 16 (6PR)

Rear 18.4 / 15 – 30 (6PR)

Clutch

Type Dual

Diameter 305 x 254 mm

Lining Material Cerametallic

Front Axle

Type Heavy Duty Box Section, Adjustable

Steering

Type Hydrostatic

Track Adjustment

Front Axle 1,271 – 1,881 mm

Rear Axle 1,423 – 2,134 mm

Engine

Make / Type Diesel / 4.41

No. of Cylinders 4

Injection Direct

Bore 101 mm

Stroke 127 mm

Capacity (litres) 4.1L

Compression Ratio 15.3:1

Aspiration Natural

Starting Aid Thermostart

Throttle Control Hand and Feet

Cooling Water

Air Cleaner Type Oil Bath

Air Pre-Cleaner Over Bonnet

Fuel Filter Dual, High Capacity

Exhaust Vertical Muffler

Oil Cooler Water Cooled

Power Take Off

Type Live

Engine Speed at 540 pto rpm 1,789 rpm

Shaft Diameter 35mm

No. of Splines 6

Instrumentation

Guages Technometer, Hourmeter, Fuel Level, Battery Condition & Water Temperature

Warning Lights Direction Indicators, Electric Charge, Headlight Main Beam, Low Engine Oil Pressure, Brake Lights & Auxiliary Socket

Weight & Dimensions

Weight

Gross Weight 2,435 kg

Dimensions

Wheel Base 2,286 mm

Overall Length 3,760 mm

Overall Width (Min) 1,871 mm

Height

Over Exhaust 2,485 mm

Over Steering Wheel 1,781 mm

Turning Circle

Without Brakes 7,502 mm

Ground Clearance

Under Gear Box 501 mm

Capacities

Fuel Tank 108.0L

Engine Pump 7.5 L

Cooling System 15.2L

Hydraulic System 36.0L

Hydrostatic Steering Reservior 2.0L

Oil Bath Air-Cleaner 0.7 L

Brake Oil 0.25L

Standard Equipment

Weight frame without weights, standard tool box with set of tools, Top Link, Top Link End Cat-I, Cat I & II balls, Check Chains, Spring Suspension Seat, Flat Top Fender & Operator’s Manual

Optional Equipment

Front End Weights, Swinging Draw Bar, Sun Canopy, Pintle Hook
